CREE Xlamp Indoor LED Lighting COB Generation 37V 40W COB CXA1830 80CRI For Track Light

Product Categories

One Plus Lighting Co., Ltd.

Contact Now

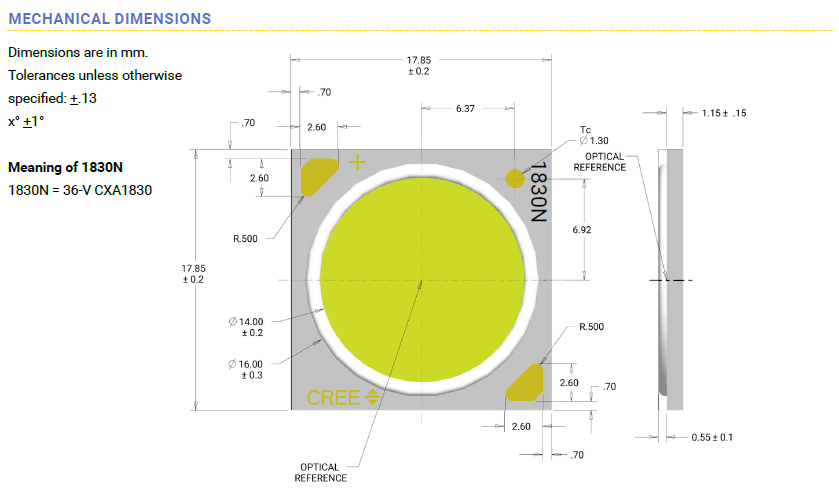

Size : 17.85 x 17.85 mm

Product Options : High-CRI

Maximum Drive Current (Standard) : 1.4 A

Max Power (W) : 57 W

Light Output : 4500 - 6500 lm

Maximum Efficacy at Binning Conditions (lm/W) : 145 lm/W

Light Emitting Surface (LES) : 14 mm

Typical Forward Voltage : 36.4 V @ 800 mA

Maximum Reverse Current : 0.1 mA

Viewing Angle : 115 °

REACh-Compliant : Yes

UL-Recognized : Yes - Level 4 Enclosure Consideration

Contact Now

CREE Xlamp COB generation 18* 18 size 40 W COB CXA1830 80CRI 3000k 4000k 5000k

Size	17.85 x 17.85 mm
Product Options	High-CRI
Maximum Drive Current (Standard)	1.4 A
Max Power (W)	57 W
Light Output	4500 - 6500 lm
Maximum Efficacy at Binning Conditions (lm/W)	145 lm/W
Light Emitting Surface (LES)	14 mm
Typical Forward Voltage	36.4 V @ 800 mA
Maximum Reverse Current	0.1 mA
Viewing Angle	115 °
Binning	85°C ANSI (White) 2- and 4-Step EasyWhite^®
Maximum ESD Withstand Voltage	8000 V (HBM per Mil-Std-883D)
RoHS-Compliant	Yes
REACh-Compliant	Yes
UL-Recognized	Yes - Level 4 Enclosure Consideration

CREE Xlamp Indoor LED Lighting COB Generation 37V 40W COB CXA1830 80CRI For Track Light
